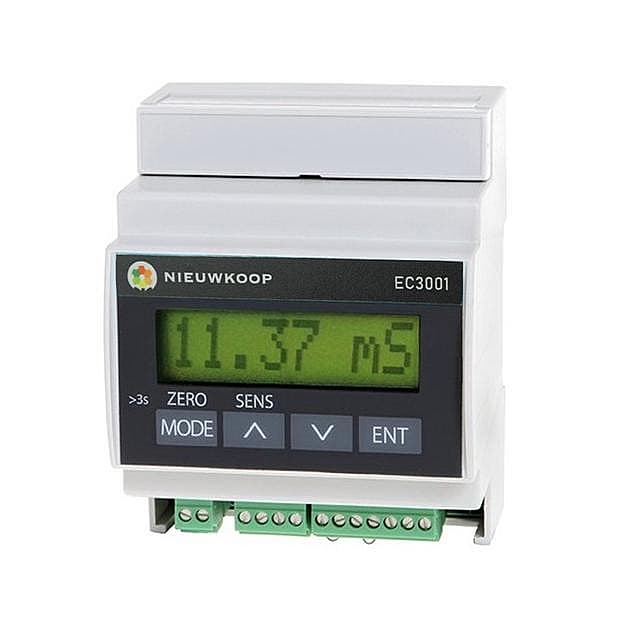

EC transmitter, 4-20mA, RS485 – Modbus
This transmitter is powered by 9-36 dc volts and provides an isolated 4-20 mA “current loop”, an RS485 and Modbus (function 03) output.
Specifications: - EC range: 0 ÷ 2,000 μs to 0 ÷ 2,000 mS - TDS range: 0 ÷ 1,000 ppm/ 0 ÷ 1,000 ppt - Temperature range: -10.0 ÷ 110.0 ° C / 14.0 ÷ 230.0 ° F - Digital output: RS485 isolated - Analogue output: 4-20 mA isolated, “current loop” two wires - Power supply: 9 / 36 Vdc - Dimensions: 71 x 95 x 58 mm. Din-rail (4 modules) - EMC/RFI compliance: en 61326 - Registered designs : 002564666-001
